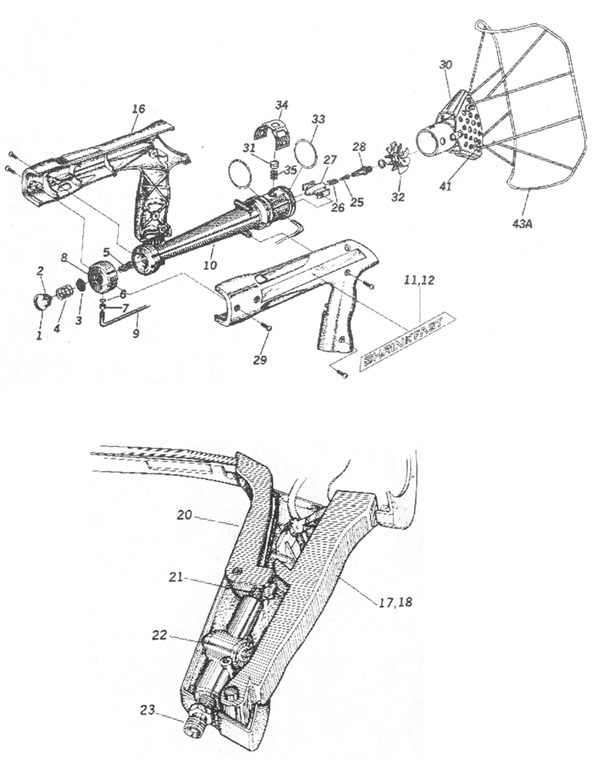

热缩枪>shrinkfast998热缩喷枪 - 998热缩喷枪零件列表

Key
1
2
3
4
5
6 & 24
7
8
9
10
11
12
14
15
16
17 & 18
20
21
22
Description
Filter Holder
"O" Ring
Filter (disc)
Filter Spring
Orifice Assy.
"O" Ring
Retainer
Inlet
Fuel Line
Pump Body
Label, RH
Label, LH
Name Plate, Euro (Not Shown)
Housing, RH
Housing, LH
Trigger/Igniter Assy.
Safety
Spring
Valve Assy.
Hose Adapter-US
Key
25
26
27
28
29
30
31
32
33
34
35
36A
37
38-1
39
40
41
43A
44A
Description
Contact Screw
Contact Spring
Scoket
Sprark Plug
Assy. Screws
Combustor
Button
Flameholder
"O" Ring
Strap
Button Spring
Hose Assy-US (Not Shown)
Regulator (Not Shown)
POL Fitting (Not Shown)
Gauge (Not Shown)
Metal Box (Not Shown)
Guard Screw
UL Gaurd
Wrench-US (Not Shown)
